Pump Selector - Calpeda Spa

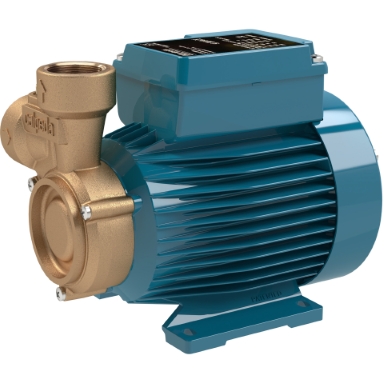

Model BCT 61-60/A

Family CT

Code 71220010001

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 39,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,50 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

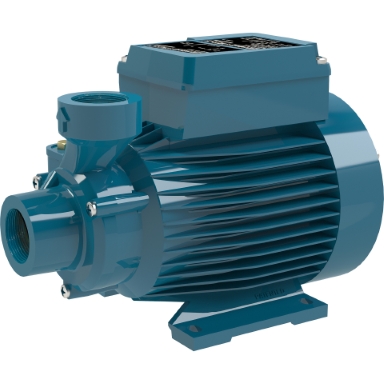

Model CT 60-60/A

Family CT

Code 70220020011

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 39,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,50 m³/h

Min head 3,00 m

kW 0,33 kW

Power consumption

Efficiency ---

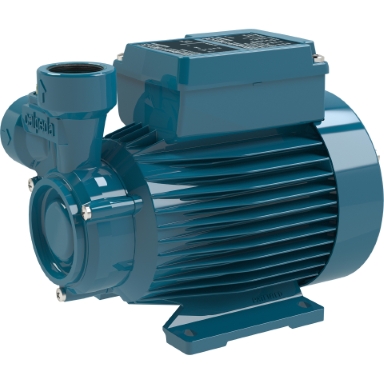

Model CT 61-60/A

Family CT

Code 70220010001

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 39,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,50 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model CTM 61-60/A

Family CT

Code 70320010001

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 39,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,50 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model BCTM 61-60/A

Family CT

Code 71320010001

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 39,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,50 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model CT 61/A

Family CT

Code 70220010000

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 41,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model CT 60/A

Family CT

Code 70220020000

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 41,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model BCT 61/A

Family CT

Code 71220010000

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 41,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,48 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model BCTM 61/A

Family CT

Code 71320011000

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 41,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,48 m³/h

Min head 5,00 m

kW 0,30 kW

Power consumption

Efficiency ---

Model CTM 61/A

Family CT

Code 70320011000

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 41,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 5,00 m

kW 0,30 kW

Power consumption

Efficiency ---

Model CTM 60-60/A

Family CT

Code 70320020001

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 39,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,50 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model CTM 60/A

Family CT

Code 70320021000

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 41,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 3,00 m

kW 0,30 kW

Power consumption

Efficiency ---

Model ICT 61

Family CT

Code 73220010000

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 41,00 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 0,48 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model ICT 61-60

Family CT

Code 73220010001

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 39,00 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 0,50 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model ICTM 61-60

Family CT

Code 73320010001

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 39,00 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 0,50 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption

Efficiency ---

Model ICTM 61

Family CT

Code 73320011000

Speed Fixed speed

Max Flow Rate 2,30 m³/h

H max 41,00 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 0,48 m³/h

Min head 5,00 m

kW 0,30 kW

Power consumption

Efficiency ---
