Pump Selector - Calpeda Spa

Filters for

Results MXHE

FIXED SPEED PUMPS

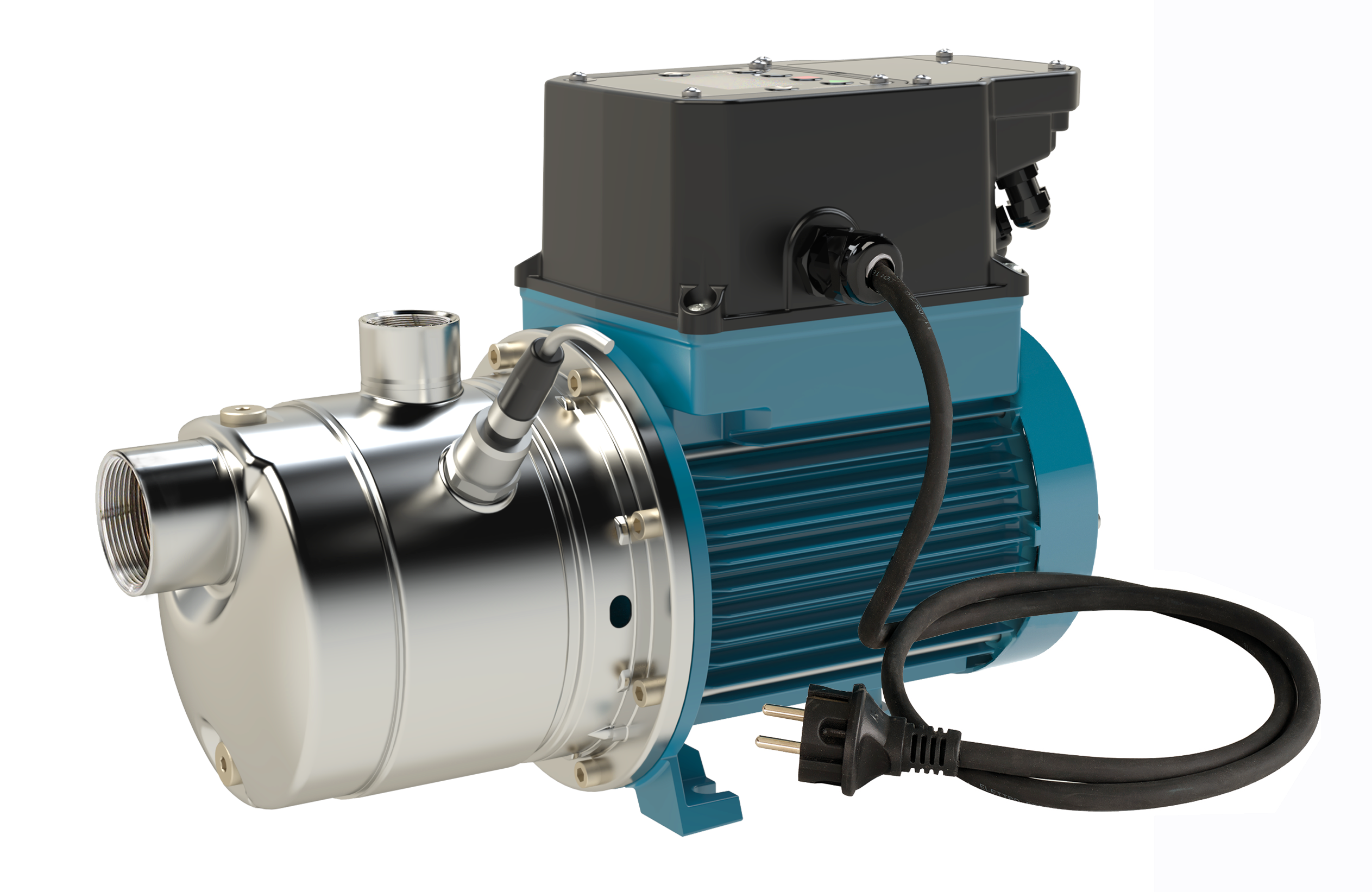

Model MXHELM 302

Family MXHE

Code T63380200000

Speed Fixed speed

Max Flow Rate 7,00 m³/h

H max 46,20 m

Pump casing Cr-Ni-Mo steel 1.4404 EN 10088 (AISI 316L)

Min Flow Rate 1,00 m³/h

Min head 10,40 m

kW 0,80 kW

Power consumption ---

Efficiency ---

Model MXHELM 303

Family MXHE

Code T63380300000

Speed Fixed speed

Max Flow Rate 7,00 m³/h

H max 72,10 m

Pump casing Cr-Ni-Mo steel 1.4404 EN 10088 (AISI 316L)

Min Flow Rate 1,00 m³/h

Min head 23,10 m

kW 1,35 kW

Power consumption ---

Efficiency ---

Model MXHELM 304

Family MXHE

Code T63380400000

Speed Fixed speed

Max Flow Rate 7,00 m³/h

H max 93,50 m

Pump casing Cr-Ni-Mo steel 1.4404 EN 10088 (AISI 316L)

Min Flow Rate 1,00 m³/h

Min head 32,60 m

kW 1,80 kW

Power consumption ---

Efficiency ---

Model MXHELM 602

Family MXHE

Code T63390200000

Speed Fixed speed

Max Flow Rate 13,00 m³/h

H max 50,40 m

Pump casing Cr-Ni-Mo steel 1.4404 EN 10088 (AISI 316L)

Min Flow Rate 2,00 m³/h

Min head 9,80 m

kW 1,35 kW

Power consumption ---

Efficiency ---

Model MXHELM 603

Family MXHE

Code T63390300000

Speed Fixed speed

Max Flow Rate 13,00 m³/h

H max 73,60 m

Pump casing Cr-Ni-Mo steel 1.4404 EN 10088 (AISI 316L)

Min Flow Rate 2,00 m³/h

Min head 15,10 m

kW 1,80 kW

Power consumption ---

Efficiency ---

Model MXHEM 602

Family MXHE

Code T62390200000

Speed Fixed speed

Max Flow Rate 13,00 m³/h

H max 50,40 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 2,00 m³/h

Min head 9,80 m

kW 1,35 kW

Power consumption ---

Efficiency ---

Model MXHEM 304

Family MXHE

Code T62380400000

Speed Fixed speed

Max Flow Rate 7,00 m³/h

H max 93,50 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,00 m³/h

Min head 32,60 m

kW 1,80 kW

Power consumption ---

Efficiency ---

Model MXHEM 603

Family MXHE

Code T62390300000

Speed Fixed speed

Max Flow Rate 13,00 m³/h

H max 73,60 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 2,00 m³/h

Min head 15,10 m

kW 1,80 kW

Power consumption ---

Efficiency ---

Model MXHEM 303

Family MXHE

Code T62380300000

Speed Fixed speed

Max Flow Rate 7,00 m³/h

H max 72,10 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,00 m³/h

Min head 23,10 m

kW 1,35 kW

Power consumption ---

Efficiency ---

Model MXHEM 302

Family MXHE

Code T62380200000

Speed Fixed speed

Max Flow Rate 7,00 m³/h

H max 46,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,00 m³/h

Min head 10,40 m

kW 0,80 kW

Power consumption ---

Efficiency ---
