Results N

FIXED SPEED PUMPS

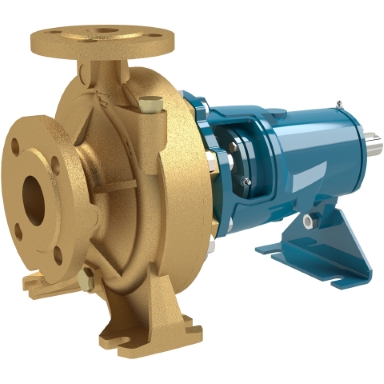

Model BN4 150-400B-60/B

Family N

Code 5100300101000

photoRow

Speed Fixed speed

Max Flow Rate 600,00 m³/h

H max 42,40 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 27,10 m

kW 55,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-400A/B

Family N

Code 5100302100000

photoRow

Speed Fixed speed

Max Flow Rate 660,00 m³/h

H max 52,50 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 32,20 m

kW 75,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-400A-60/B

Family N

Code 5100302101000

photoRow

Speed Fixed speed

Max Flow Rate 660,00 m³/h

H max 51,90 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 32,70 m

kW 75,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-400S

Family N

Code 5100302A00000

photoRow

Speed Fixed speed

Max Flow Rate 660,00 m³/h

H max 60,80 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 37,60 m

kW 90,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-400S-60

Family N

Code 5100302A01000

photoRow

Speed Fixed speed

Max Flow Rate 660,00 m³/h

H max 60,60 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 42,50 m

kW 90,00 kW

Power consumption ---

Efficiency ---

Model BN 32L-160C

Family N

Code 5100303000000

photoRow

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 25,10 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 9,60 m³/h

Min head 13,40 m

kW 2,20 kW

Power consumption ---

Efficiency ---

Model BN 32L-160C-60

Family N

Code 5100303001000

photoRow

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 26,10 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 9,60 m³/h

Min head 13,70 m

kW 2,20 kW

Power consumption ---

Efficiency ---

Model BN 32L-160B

Family N

Code 5100305000000

photoRow

Speed Fixed speed

Max Flow Rate 29,00 m³/h

H max 30,40 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 9,60 m³/h

Min head 17,90 m

kW 3,00 kW

Power consumption ---

Efficiency ---

Model BN 32L-160B-60

Family N

Code 5100305001000

photoRow

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 30,30 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 9,60 m³/h

Min head 20,10 m

kW 3,00 kW

Power consumption ---

Efficiency ---

Model BN 32L-160A

Family N

Code 5100307000000

photoRow

Speed Fixed speed

Max Flow Rate 32,00 m³/h

H max 39,90 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 9,60 m³/h

Min head 25,60 m

kW 4,00 kW

Power consumption ---

Efficiency ---

«
