Results N

FIXED SPEED PUMPS

Model BN 32L-160B G

Family N

Code 5100305004000

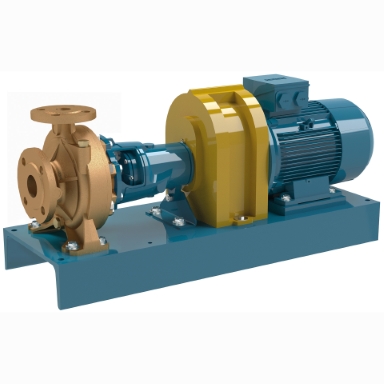

photoRow

Speed Fixed speed

Max Flow Rate 29,00 m³/h

H max 30,40 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 9,60 m³/h

Min head 17,90 m

kW 3,00 kW

Power consumption ---

Efficiency ---

Model BN 32L-160C-60 G

Family N

Code 5100303005000

photoRow

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 26,10 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 9,60 m³/h

Min head 13,70 m

kW 2,20 kW

Power consumption ---

Efficiency ---

Model BN 32L-160C G

Family N

Code 5100303004000

photoRow

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 25,10 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 9,60 m³/h

Min head 13,40 m

kW 2,20 kW

Power consumption ---

Efficiency ---

Model BN4 150-400S-60 G

Family N

Code 5100302A05000

photoRow

Speed Fixed speed

Max Flow Rate 660,00 m³/h

H max 60,60 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 42,50 m

kW 90,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-400S G

Family N

Code 5100302A04000

photoRow

Speed Fixed speed

Max Flow Rate 660,00 m³/h

H max 60,80 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 37,60 m

kW 90,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-400A-60/B G

Family N

Code 5100302105000

photoRow

Speed Fixed speed

Max Flow Rate 660,00 m³/h

H max 51,90 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 32,70 m

kW 75,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-400A/B G

Family N

Code 5100302104000

photoRow

Speed Fixed speed

Max Flow Rate 660,00 m³/h

H max 52,50 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 32,20 m

kW 75,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-400B-60/B G

Family N

Code 5100300105000

photoRow

Speed Fixed speed

Max Flow Rate 600,00 m³/h

H max 42,40 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 27,10 m

kW 55,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-400B/B G

Family N

Code 5100300104000

photoRow

Speed Fixed speed

Max Flow Rate 600,00 m³/h

H max 42,20 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 25,40 m

kW 55,00 kW

Power consumption ---

Efficiency ---

Model BN4 150-315S-60 G

Family N

Code 5100296A05000

photoRow

Speed Fixed speed

Max Flow Rate 660,00 m³/h

H max 35,60 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 132,00 m³/h

Min head 19,80 m

kW 45,00 kW

Power consumption ---

Efficiency ---

«
