Model NMXLM 25/200B-60

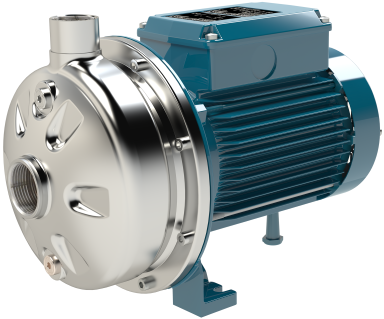

Family NMX

Code 63X1207001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 28,50 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 21,70 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXLM 25/200B

Family NMX

Code 63X1207000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 28,90 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 20,80 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXLM 25/200C

Family NMX

Code 63X1206100000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 19,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 11,40 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXLM 25/200C-60

Family NMX

Code 63X1206001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 22,60 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 15,50 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXLM 25/200C

Family NMX

Code 63X1206000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 19,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 11,40 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXLM 25/120A-60

Family NMX

Code 63X1128001000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 36,70 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 29,30 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXLM 25/120A

Family NMX

Code 63X1128000000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 35,30 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 27,10 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXLM 25/120B

Family NMX

Code 63X1127100000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 27,80 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 19,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXLM 25/120B-60

Family NMX

Code 63X1127001000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 29,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 23,30 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXLM 25/120B

Family NMX

Code 63X1127000000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 27,80 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 19,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXLM 25/120C-60

Family NMX

Code 63X1126001000

Speed Fixed speed

Max Flow Rate 10,80 m³/h

H max 21,60 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 14,10 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXLM 25/120C

Family NMX

Code 63X1126000000

Speed Fixed speed

Max Flow Rate 10,80 m³/h

H max 19,40 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 12,80 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXLM 25/90A

Family NMX

Code 63X1098100000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 18,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXLM 25/90A-60

Family NMX

Code 63X1098001000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,70 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 21,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXLM 25/90A

Family NMX

Code 63X1098000000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 18,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXLM 25/70A-60

Family NMX

Code 63X1078001000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 26,90 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 19,30 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXLM 25/70A

Family NMX

Code 63X1078000000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 25,80 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 16,30 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXLM 25/70B-60

Family NMX

Code 63X1077001000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 19,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 11,00 m

kW 0,55 kW

Power consumption

Efficiency ---

Model NMXLM 25/70B

Family NMX

Code 63X1077000000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 18,10 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 10,20 m

kW 0,55 kW

Power consumption

Efficiency ---

Model NMXL 25/200A-60

Family NMX

Code 63W1208001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 38,80 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 28,90 m

kW 2,20 kW

Power consumption

Efficiency ---

Model NMXL 25/200A

Family NMX

Code 63W1208000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 37,10 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 27,70 m

kW 2,20 kW

Power consumption

Efficiency ---

Model NMXL 25/200B-60

Family NMX

Code 63W1207001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 28,50 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 21,70 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXL 25/200B

Family NMX

Code 63W1207000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 28,90 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 20,80 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXL 25/200C-60

Family NMX

Code 63W1206001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 22,60 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 15,50 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXL 25/200C

Family NMX

Code 63W1206000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 19,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 4,80 m³/h

Min head 11,40 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXL 25/120A-60

Family NMX

Code 63W1128001000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 36,70 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 29,30 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXL 25/120A

Family NMX

Code 63W1128000000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 35,30 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 27,10 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXL 25/120B-60

Family NMX

Code 63W1127001000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 29,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 23,30 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXL 25/120B

Family NMX

Code 63W1127000000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 27,80 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 19,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXL 25/120C-60

Family NMX

Code 63W1126001000

Speed Fixed speed

Max Flow Rate 10,80 m³/h

H max 21,60 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 14,10 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXL 25/120C

Family NMX

Code 63W1126000000

Speed Fixed speed

Max Flow Rate 10,80 m³/h

H max 19,40 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 3,00 m³/h

Min head 12,80 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXL 25/90A-60

Family NMX

Code 63W1098001000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,70 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 21,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXL 25/90A

Family NMX

Code 63W1098000000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 18,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXL 25/70A-60

Family NMX

Code 63W1078001000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 26,90 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 19,30 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXL 25/70A

Family NMX

Code 63W1078000000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 25,80 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 16,30 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXL 25/70B-60

Family NMX

Code 63W1077001000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 19,20 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 11,00 m

kW 0,55 kW

Power consumption

Efficiency ---

Model NMXL 25/70B

Family NMX

Code 63W1077000000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 18,10 m

Pump casing Cr-Ni-Mo steel 1.4401 EN 10088 (AISI 316)

Min Flow Rate 1,20 m³/h

Min head 10,20 m

kW 0,55 kW

Power consumption

Efficiency ---

Model NMXM 25/200B-60

Family NMX

Code 62X1207001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 28,50 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 21,70 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXM 25/200B

Family NMX

Code 62X1207000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 28,90 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 20,80 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXM 25/200C

Family NMX

Code 62X1206100000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 19,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 11,40 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXM 25/200C-60

Family NMX

Code 62X1206001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 22,60 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 15,50 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXM 25/200C

Family NMX

Code 62X1206000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 19,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 11,40 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXM 25/120A-60

Family NMX

Code 62X1128001000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 36,70 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 29,30 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXM 25/120A

Family NMX

Code 62X1128000000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 35,30 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 27,10 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMXM 25/120B

Family NMX

Code 62X1127100000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 27,80 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 19,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXM 25/120B-60

Family NMX

Code 62X1127001000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 29,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 23,30 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXM 25/120B

Family NMX

Code 62X1127000000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 27,80 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 19,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXM 25/120C-60

Family NMX

Code 62X1126001000

Speed Fixed speed

Max Flow Rate 10,80 m³/h

H max 21,60 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 14,10 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXM 25/120C

Family NMX

Code 62X1126000000

Speed Fixed speed

Max Flow Rate 10,80 m³/h

H max 19,40 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 12,80 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXM 25/90A

Family NMX

Code 62X1098100000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 18,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXM 25/90A-60

Family NMX

Code 62X1098001000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,70 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 21,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXM 25/90A

Family NMX

Code 62X1098000000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 18,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMXM 25/70A-60

Family NMX

Code 62X1078001000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 26,90 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 19,30 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXM 25/70A

Family NMX

Code 62X1078000000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 25,80 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 16,30 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMXM 25/70B-60

Family NMX

Code 62X1077001000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 19,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 11,00 m

kW 0,55 kW

Power consumption

Efficiency ---

Model NMXM 25/70B

Family NMX

Code 62X1077000000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 18,10 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 10,20 m

kW 0,55 kW

Power consumption

Efficiency ---

Model NMX 25/200A-60

Family NMX

Code 62W1208001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 38,80 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 28,90 m

kW 2,20 kW

Power consumption

Efficiency ---

Model NMX 25/200A

Family NMX

Code 62W1208000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 37,10 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 27,70 m

kW 2,20 kW

Power consumption

Efficiency ---

Model NMX 25/200B-60

Family NMX

Code 62W1207001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 28,50 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 21,70 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMX 25/200B

Family NMX

Code 62W1207000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 28,90 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 20,80 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMX 25/200C-60

Family NMX

Code 62W1206001000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 22,60 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 15,50 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMX 25/200C

Family NMX

Code 62W1206000000

Speed Fixed speed

Max Flow Rate 15,00 m³/h

H max 19,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 4,80 m³/h

Min head 11,40 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMX 25/120A-60

Family NMX

Code 62W1128001000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 36,70 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 29,30 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMX 25/120A

Family NMX

Code 62W1128000000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 35,30 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 27,10 m

kW 1,50 kW

Power consumption

Efficiency ---

Model NMX 25/120B-60

Family NMX

Code 62W1127001000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 29,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 23,30 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMX 25/120B

Family NMX

Code 62W1127000000

Speed Fixed speed

Max Flow Rate 9,60 m³/h

H max 27,80 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 19,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMX 25/120C-60

Family NMX

Code 62W1126001000

Speed Fixed speed

Max Flow Rate 10,80 m³/h

H max 21,60 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 14,10 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMX 25/120C

Family NMX

Code 62W1126000000

Speed Fixed speed

Max Flow Rate 10,80 m³/h

H max 19,40 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 3,00 m³/h

Min head 12,80 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMX 25/90A-60

Family NMX

Code 62W1098001000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,70 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 21,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMX 25/90A

Family NMX

Code 62W1098000000

Speed Fixed speed

Max Flow Rate 6,60 m³/h

H max 28,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 18,70 m

kW 1,10 kW

Power consumption

Efficiency ---

Model NMX 25/70A-60

Family NMX

Code 62W1078001000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 26,90 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 19,30 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMX 25/70A

Family NMX

Code 62W1078000000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 25,80 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 16,30 m

kW 0,75 kW

Power consumption

Efficiency ---

Model NMX 25/70B-60

Family NMX

Code 62W1077001000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 19,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 11,00 m

kW 0,55 kW

Power consumption

Efficiency ---

Model NMX 25/70B

Family NMX

Code 62W1077000000

Speed Fixed speed

Max Flow Rate 5,40 m³/h

H max 18,10 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 10,20 m

kW 0,55 kW

Power consumption

Efficiency ---

Filters for

Results NMX

Filters for

Filters for
