Model GQVM 50-8-60

Family GQS, GQV

Code 70U81050007

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQV 50-9-60

Family GQS, GQV

Code 70T81110004

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 9,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQS 50-8-60

Family GQS, GQV

Code 70T91060003

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQVM 50-11-60

Family GQS, GQV

Code 70U81150005

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,70 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,50 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQVM 50-13

Family GQS, GQV

Code 70U81200000

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,20 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,00 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQVM 50-9

Family GQS, GQV

Code 70U81100000

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 8,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQVM 50-11

Family GQS, GQV

Code 70U81150000

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQSM 50-9

Family GQS, GQV

Code 70U91100000

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 8,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQSM 50-8

Family GQS, GQV

Code 70U91050000

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQVM 50-15

Family GQS, GQV

Code 70U81250000

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQSM 50-15-60

Family GQS, GQV

Code 70U91250008

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQSM 50-13-60

Family GQS, GQV

Code 70U91200006

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQSM 50-11-60

Family GQS, GQV

Code 70U91150006

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,70 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,50 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQSM 50-9-60

Family GQS, GQV

Code 70U91100003

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 9,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQSM 50-8-60

Family GQS, GQV

Code 70U91050014

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQVM 50-13-60

Family GQS, GQV

Code 70U81200006

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQS 50-13-60

Family GQS, GQV

Code 70T91210004

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQS 50-11-60

Family GQS, GQV

Code 70T91160003

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,70 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,50 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQV 50-11-60

Family GQS, GQV

Code 70T81160002

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,70 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,50 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQV 50-9-CG

Family GQS, GQV

Code 70T81110002

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 8,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQVM 50-15-60

Family GQS, GQV

Code 70U81250004

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQVM 50-9-60

Family GQS, GQV

Code 70U81100003

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 9,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQS 50-15-60

Family GQS, GQV

Code 70T91260003

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQS 50-13 CG

Family GQS, GQV

Code 70T91210005

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,20 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,00 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQS 50-9-60

Family GQS, GQV

Code 70T91110002

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 9,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQS 50-9-CG

Family GQS, GQV

Code 70T91110001

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 8,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQV 50-8 CG

Family GQS, GQV

Code 70T81060002

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQV 50-13 CG

Family GQS, GQV

Code 70T81210008

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,20 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,00 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQS 50-8

Family GQS, GQV

Code 70T91060000

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQS 50-8 CG

Family GQS, GQV

Code 70T91060002

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQS 50-9

Family GQS, GQV

Code 70T91110000

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 8,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQS 50-11

Family GQS, GQV

Code 70T91160000

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQS 50-13

Family GQS, GQV

Code 70T91210000

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,20 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,00 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQS 50-15

Family GQS, GQV

Code 70T91260000

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQSM 50-13

Family GQS, GQV

Code 70U91200000

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,20 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,00 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQV 50-15 CG

Family GQS, GQV

Code 70T81260004

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQS 50-15 CG

Family GQS, GQV

Code 70T91260002

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQSM 50-11

Family GQS, GQV

Code 70U91150000

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQSM 50-15

Family GQS, GQV

Code 70U91250000

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQV 50-8

Family GQS, GQV

Code 70T81060000

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQV 50-9

Family GQS, GQV

Code 70T81110000

Speed Fixed speed

Max Flow Rate 27,00 m³/h

H max 8,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,20 m

kW 0,75 kW

Power consumption

Efficiency ---

Model GQV 50-11

Family GQS, GQV

Code 70T81160000

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQV 50-11 CG

Family GQS, GQV

Code 70T81160003

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQV 50-13

Family GQS, GQV

Code 70T81210000

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,20 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,00 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQV 50-15

Family GQS, GQV

Code 70T81260000

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

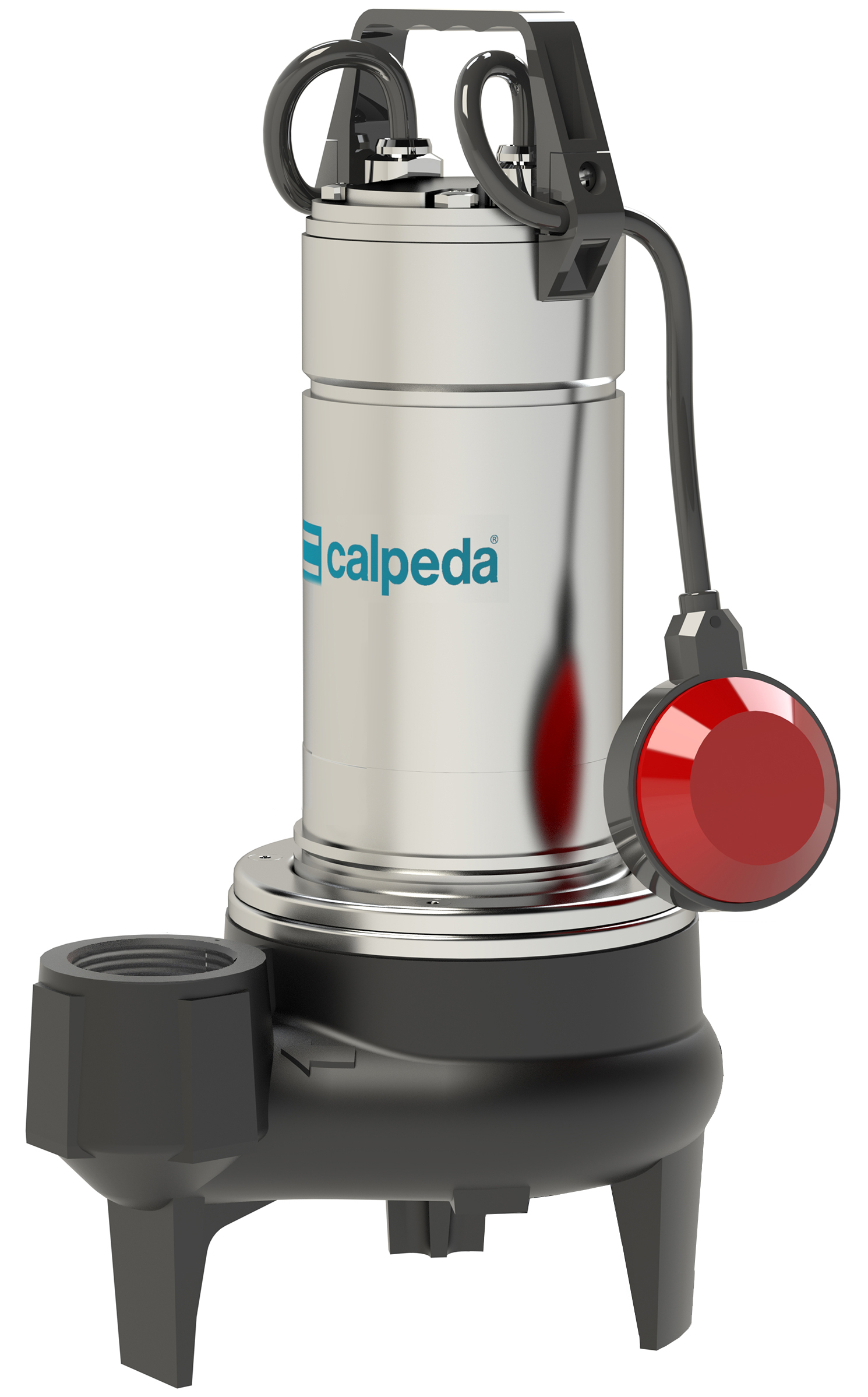

Model GQS 50-11-CG

Family GQS, GQV

Code 70T91160002

Speed Fixed speed

Max Flow Rate 33,00 m³/h

H max 10,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,90 kW

Power consumption

Efficiency ---

Model GQVM 50-8

Family GQS, GQV

Code 70U81050000

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQSM 40-9

Family GQS, GQV

Code 70U90100000

Speed Fixed speed

Max Flow Rate 21,00 m³/h

H max 8,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,50 m³/h

Min head 0,90 m

kW 0,45 kW

Power consumption

Efficiency ---

Model GQS 40-9

Family GQS, GQV

Code 70T90110000

Speed Fixed speed

Max Flow Rate 21,00 m³/h

H max 8,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,50 m³/h

Min head 0,90 m

kW 0,45 kW

Power consumption

Efficiency ---

Model GQV 50-8-60

Family GQS, GQV

Code 70T81060006

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQV 50-8-60 CG

Family GQS, GQV

Code 70T81060007

Speed Fixed speed

Max Flow Rate 24,00 m³/h

H max 7,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 0,55 kW

Power consumption

Efficiency ---

Model GQS 40-9-60

Family GQS, GQV

Code 70T90110001

Speed Fixed speed

Max Flow Rate 21,00 m³/h

H max 9,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,50 m³/h

Min head 0,80 m

kW 0,45 kW

Power consumption

Efficiency ---

Model GQSM 40-9-60

Family GQS, GQV

Code 70U90100006

Speed Fixed speed

Max Flow Rate 21,00 m³/h

H max 9,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,50 m³/h

Min head 0,80 m

kW 0,45 kW

Power consumption

Efficiency ---

Model GQV 50-15-60

Family GQS, GQV

Code 70T81260019

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 14,80 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 3,50 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQV 50-13-60

Family GQS, GQV

Code 70T81210017

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 12,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,80 m

kW 1,10 kW

Power consumption

Efficiency ---

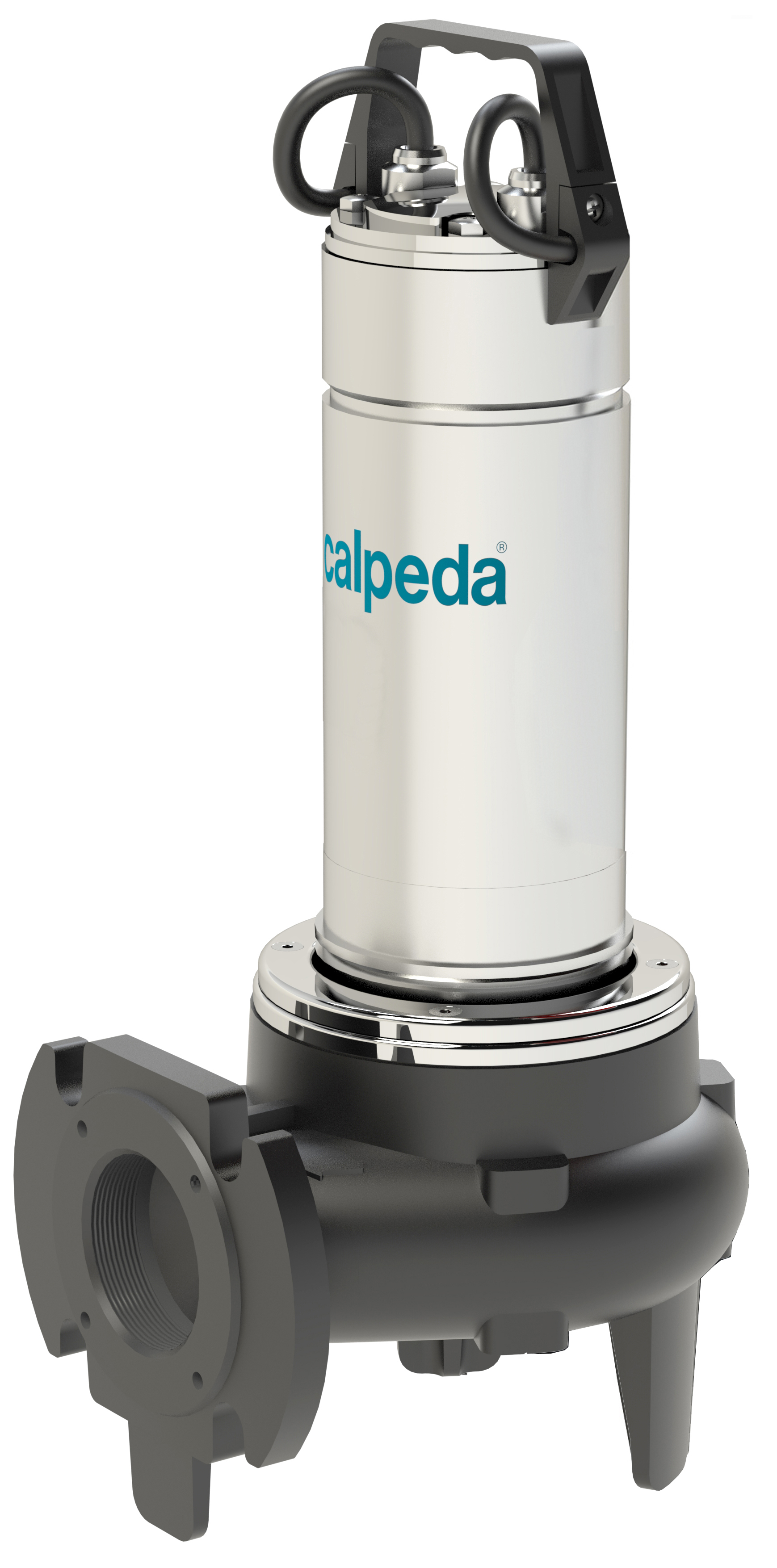

Model GQV 65-11

Family GQS, GQV

Code 70T82110000

Speed Fixed speed

Max Flow Rate 42,00 m³/h

H max 10,70 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 6,00 m³/h

Min head 2,30 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQV 65-9 CG

Family GQS, GQV

Code 70T82060002

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 8,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 6,00 m³/h

Min head 2,10 m

kW 1,10 kW

Power consumption

Efficiency ---

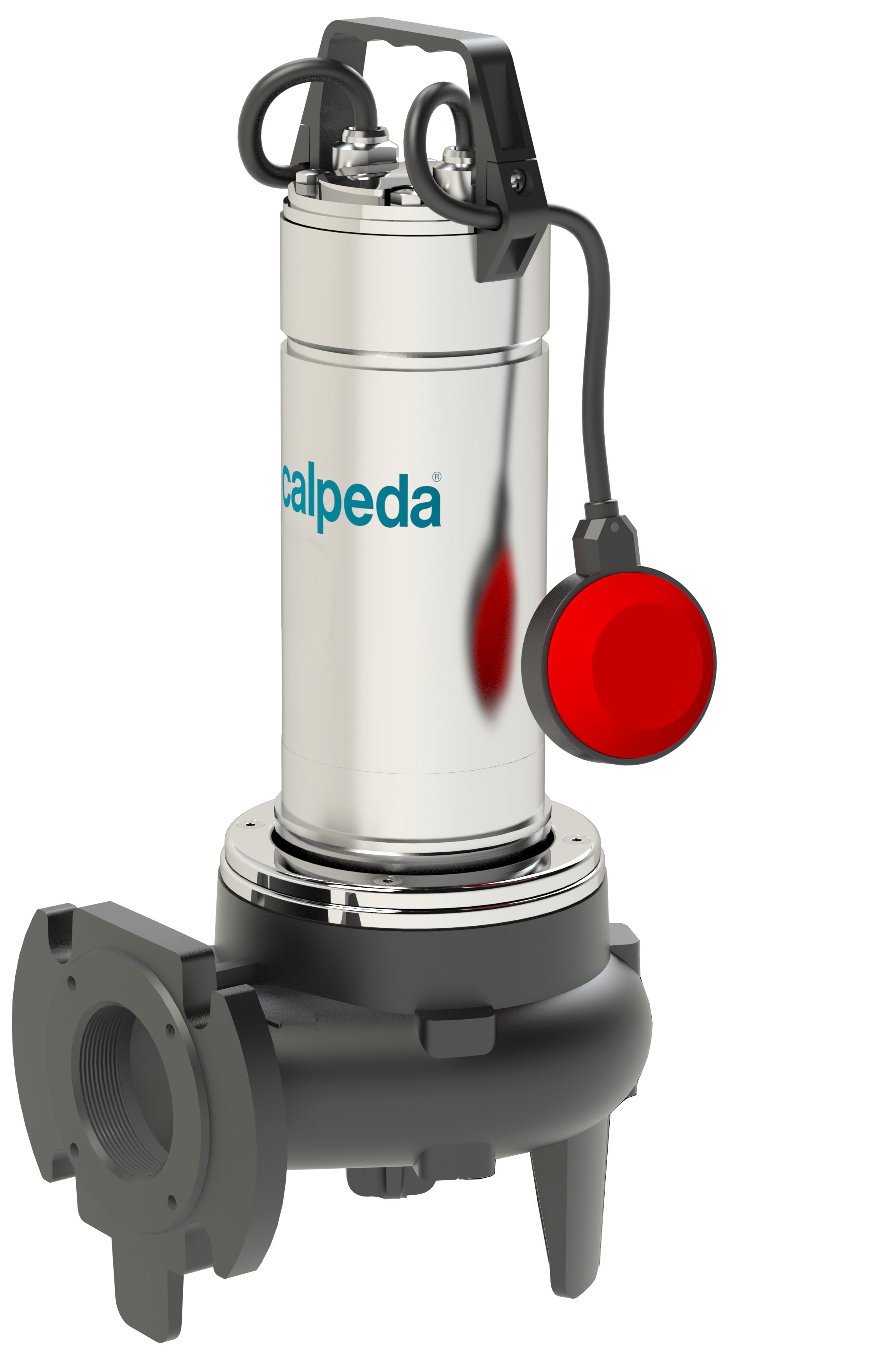

Model GQV 65-11 CG

Family GQS, GQV

Code 70T82110002

Speed Fixed speed

Max Flow Rate 42,00 m³/h

H max 10,70 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 6,00 m³/h

Min head 2,30 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQV 65-9

Family GQS, GQV

Code 70T82060000

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 8,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 6,00 m³/h

Min head 2,10 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQV 65-9-60

Family GQS, GQV

Code 70T82060003

Speed Fixed speed

Max Flow Rate 30,00 m³/h

H max 8,10 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 6,00 m³/h

Min head 3,20 m

kW 1,10 kW

Power consumption

Efficiency ---

Model GQV 65-11-60

Family GQS, GQV

Code 70T82110004

Speed Fixed speed

Max Flow Rate 36,00 m³/h

H max 9,20 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 6,00 m³/h

Min head 3,00 m

kW 1,50 kW

Power consumption

Efficiency ---

Model GQV 50-16

Family GQS, GQV

Code 70T81310000

Speed Fixed speed

Max Flow Rate 44,00 m³/h

H max 16,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,00 m

kW 2,00 kW

Power consumption

Efficiency ---

Model GQV 50-18

Family GQS, GQV

Code 70T81360000

Speed Fixed speed

Max Flow Rate 48,00 m³/h

H max 17,40 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,60 m

kW 2,60 kW

Power consumption

Efficiency ---

Model GQV 50-18-60

Family GQS, GQV

Code 70T81360001

Speed Fixed speed

Max Flow Rate 44,00 m³/h

H max 17,20 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 1,50 m

kW 2,60 kW

Power consumption

Efficiency ---

Model GQV 65-15

Family GQS, GQV

Code 70T82210000

Speed Fixed speed

Max Flow Rate 57,00 m³/h

H max 13,90 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 6,00 m³/h

Min head 2,00 m

kW 2,60 kW

Power consumption

Efficiency ---

Model GQV 50-16 CG

Family GQS, GQV

Code 70T81310001

Speed Fixed speed

Max Flow Rate 44,00 m³/h

H max 16,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 3,00 m³/h

Min head 2,00 m

kW 2,00 kW

Power consumption

Efficiency ---

Model GQV 65-13 CG

Family GQS, GQV

Code 70T82160001

Speed Fixed speed

Max Flow Rate 51,00 m³/h

H max 11,90 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 6,00 m³/h

Min head 1,20 m

kW 2,00 kW

Power consumption

Efficiency ---

Model GQV 65-13

Family GQS, GQV

Code 70T82160000

Speed Fixed speed

Max Flow Rate 51,00 m³/h

H max 11,90 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 6,00 m³/h

Min head 1,20 m

kW 2,00 kW

Power consumption

Efficiency ---

Filters for

Results GQS, GQV

Filters for

Filters for
