FIXED SPEED PUMPS

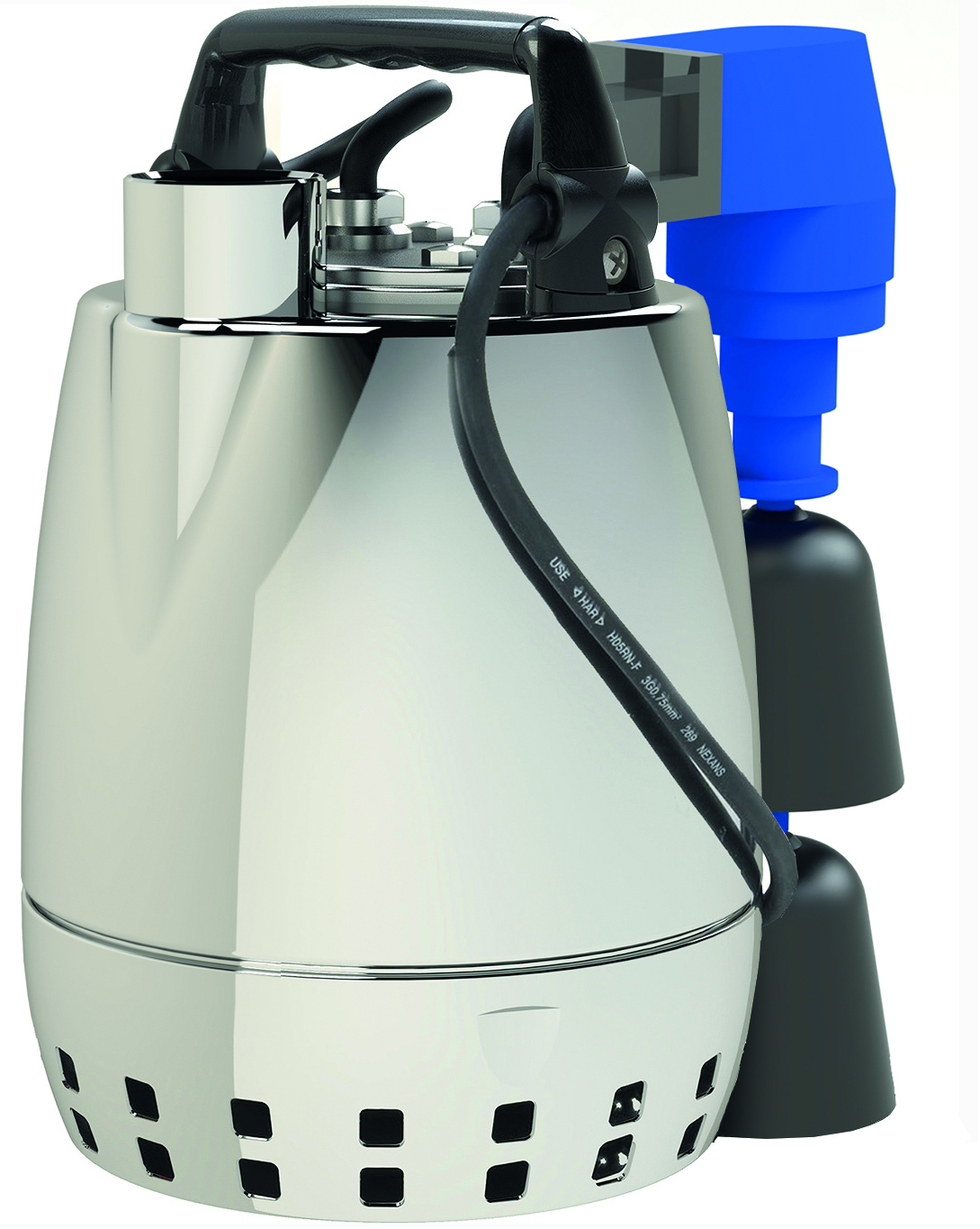

Model GXRM 9 GFA

Family GXR, GXV

Code 72U70050025

Speed Fixed speed

Max Flow Rate 10,20 m³/h

H max 8,30 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 1,70 m

kW 0,25 kW

Power consumption ---

Efficiency ---

Model GXRM 9-60 SG

Family GXR, GXV

Code 72U70050030

Speed Fixed speed

Max Flow Rate 12,00 m³/h

H max 8,50 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 1,00 m

kW 0,25 kW

Power consumption ---

Efficiency ---

Model GXRM 9-60 GF

Family GXR, GXV

Code 72U70050031

Speed Fixed speed

Max Flow Rate 12,00 m³/h

H max 8,50 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 1,00 m

kW 0,25 kW

Power consumption ---

Efficiency ---

Model GXRM 11 SG

Family GXR, GXV

Code 72U70100005

Speed Fixed speed

Max Flow Rate 12,00 m³/h

H max 10,40 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 2,20 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model GXRM 11 GF

Family GXR, GXV

Code 72U70100012

Speed Fixed speed

Max Flow Rate 12,00 m³/h

H max 10,40 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 2,20 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model GXRM 11 GFA

Family GXR, GXV

Code 72U70100020

Speed Fixed speed

Max Flow Rate 12,00 m³/h

H max 10,40 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 2,20 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model GXRM 11-60 GF

Family GXR, GXV

Code 72U70100039

Speed Fixed speed

Max Flow Rate 13,20 m³/h

H max 10,40 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 1,70 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model GXRM 13 SG

Family GXR, GXV

Code 72U70150004

Speed Fixed speed

Max Flow Rate 13,20 m³/h

H max 11,70 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 2,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model GXRM 13 GF

Family GXR, GXV

Code 72U70150010

Speed Fixed speed

Max Flow Rate 13,20 m³/h

H max 11,70 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 2,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model GXRM 13-60 GF

Family GXR, GXV

Code 72U70150026

Speed Fixed speed

Max Flow Rate 13,20 m³/h

H max 12,20 m

Pump casing Cr-Ni steel 1.4301 EN 10088 (AISI 304)

Min Flow Rate 1,20 m³/h

Min head 2,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---
