Pump Selector - Calpeda Spa

Model T 76/A

Family T, TP

Code 7000005200000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 70,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 26,00 m

kW 1,10 kW

Power consumption ---

Efficiency ---

Model T 76-60/A

Family T, TP

Code 7000005201000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 60,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,20 m³/h

Min head 25,00 m

kW 1,10 kW

Power consumption ---

Efficiency ---

Model TP 80

Family T, TP

Code 7000007100000

Speed Fixed speed

Max Flow Rate 1,89 m³/h

H max 90,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,38 m³/h

Min head 20,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model TP 80-60

Family T, TP

Code 7000007101000

Speed Fixed speed

Max Flow Rate 1,89 m³/h

H max 91,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,60 m³/h

Min head 25,50 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model TP 100/B

Family T, TP

Code 7000008300000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 150,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 62,00 m

kW 2,20 kW

Power consumption ---

Efficiency ---

Model TP 132R/A

Family T, TP

Code 7000015200000

Speed Fixed speed

Max Flow Rate 4,80 m³/h

H max 145,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,89 m³/h

Min head 70,00 m

kW 5,50 kW

Power consumption ---

Efficiency ---

Model TP 132R-60/A

Family T, TP

Code 7000015201000

Speed Fixed speed

Max Flow Rate 4,20 m³/h

H max 140,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,89 m³/h

Min head 95,00 m

kW 7,50 kW

Power consumption ---

Efficiency ---

Model TP 132/A

Family T, TP

Code 7000017200000

Speed Fixed speed

Max Flow Rate 6,00 m³/h

H max 165,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 4,80 m³/h

Min head 120,00 m

kW 7,50 kW

Power consumption ---

Efficiency ---

Model TP 132-60/A

Family T, TP

Code 7000017201000

Speed Fixed speed

Max Flow Rate 6,00 m³/h

H max 160,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 4,80 m³/h

Min head 120,00 m

kW 7,50 kW

Power consumption ---

Efficiency ---

Model T 61/A

Family T, TP

Code 7002002200000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 38,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,38 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption ---

Efficiency ---

Model T 61-60/A

Family T, TP

Code 7002002201000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 36,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,38 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption ---

Efficiency ---

Model T 65

Family T, TP

Code 7002003000000

Speed Fixed speed

Max Flow Rate 3,00 m³/h

H max 44,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 8,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model T 65-60

Family T, TP

Code 7002003001000

Speed Fixed speed

Max Flow Rate 3,00 m³/h

H max 40,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,75 m³/h

Min head 8,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model T 70/B

Family T, TP

Code 7002004100000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 59,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 10,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model T 70-60/B

Family T, TP

Code 7002004101000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 48,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,20 m³/h

Min head 10,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model TP 78/A

Family T, TP

Code 7002006000000

Speed Fixed speed

Max Flow Rate 1,00 m³/h

H max 75,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,06 m³/h

Min head 15,00 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model TP 78-60/A

Family T, TP

Code 7002006001000

Speed Fixed speed

Max Flow Rate 0,75 m³/h

H max 74,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,06 m³/h

Min head 25,00 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model TM 76-60

Family T, TP

Code 7010005101000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 60,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,20 m³/h

Min head 25,00 m

kW 1,10 kW

Power consumption ---

Efficiency ---

Model TM 76

Family T, TP

Code 7010005200000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 70,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 26,00 m

kW 1,10 kW

Power consumption ---

Efficiency ---

Model TPM 80-60

Family T, TP

Code 7010007101000

Speed Fixed speed

Max Flow Rate 1,89 m³/h

H max 91,50 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,60 m³/h

Min head 25,50 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model TPM 80

Family T, TP

Code 7010007200000

Speed Fixed speed

Max Flow Rate 1,89 m³/h

H max 90,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,38 m³/h

Min head 20,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model TM 65

Family T, TP

Code 7012003000000

Speed Fixed speed

Max Flow Rate 3,00 m³/h

H max 44,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 8,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model TM 65-60

Family T, TP

Code 7012003001000

Speed Fixed speed

Max Flow Rate 3,00 m³/h

H max 40,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,75 m³/h

Min head 8,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model TM 70-60/A

Family T, TP

Code 7012004001000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 48,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,20 m³/h

Min head 10,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model TM 70/A

Family T, TP

Code 7012004100000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 59,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,48 m³/h

Min head 10,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model TPM 78/A

Family T, TP

Code 7012006000000

Speed Fixed speed

Max Flow Rate 1,00 m³/h

H max 75,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,06 m³/h

Min head 15,00 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model TPM 78-60/A

Family T, TP

Code 7012006001000

Speed Fixed speed

Max Flow Rate 0,75 m³/h

H max 74,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,06 m³/h

Min head 25,00 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model TM 61-60

Family T, TP

Code 7013002001000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 36,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,38 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption ---

Efficiency ---

Model TM 61

Family T, TP

Code 7013002100000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 38,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,38 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption ---

Efficiency ---

Model BTP 80

Family T, TP

Code 7100007100000

Speed Fixed speed

Max Flow Rate 1,89 m³/h

H max 90,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,38 m³/h

Min head 20,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model BTP 80-60

Family T, TP

Code 7100007101000

Speed Fixed speed

Max Flow Rate 1,89 m³/h

H max 91,50 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,60 m³/h

Min head 25,50 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model BT 61/A

Family T, TP

Code 7102002200000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 38,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,38 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption ---

Efficiency ---

Model BT 61-60/A

Family T, TP

Code 7102002201000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 36,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,38 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption ---

Efficiency ---

Model BT 65

Family T, TP

Code 7102003000000

Speed Fixed speed

Max Flow Rate 3,00 m³/h

H max 44,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,48 m³/h

Min head 8,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model BT 65-60

Family T, TP

Code 7102003001000

Speed Fixed speed

Max Flow Rate 3,00 m³/h

H max 40,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,75 m³/h

Min head 8,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model BT 70/B

Family T, TP

Code 7102004100000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 59,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,48 m³/h

Min head 10,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model BT 70-60/B

Family T, TP

Code 7102004101000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 48,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 1,20 m³/h

Min head 10,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model BTP 78/A

Family T, TP

Code 7102006000000

Speed Fixed speed

Max Flow Rate 1,00 m³/h

H max 75,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,06 m³/h

Min head 15,00 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model BTP 78-60/A

Family T, TP

Code 7102006001000

Speed Fixed speed

Max Flow Rate 0,75 m³/h

H max 74,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,06 m³/h

Min head 25,00 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model BTPM 80-60

Family T, TP

Code 7110007101000

Speed Fixed speed

Max Flow Rate 1,89 m³/h

H max 91,50 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,60 m³/h

Min head 25,50 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model BTPM 80

Family T, TP

Code 7110007200000

Speed Fixed speed

Max Flow Rate 1,89 m³/h

H max 90,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,38 m³/h

Min head 20,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model BTM 61-60

Family T, TP

Code 7112002101000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 36,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,38 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption ---

Efficiency ---

Model BTM 61

Family T, TP

Code 7112002200000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 38,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,38 m³/h

Min head 5,00 m

kW 0,33 kW

Power consumption ---

Efficiency ---

Model BTM 65

Family T, TP

Code 7112003000000

Speed Fixed speed

Max Flow Rate 3,00 m³/h

H max 44,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,48 m³/h

Min head 8,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model BTM 65-60

Family T, TP

Code 7112003001000

Speed Fixed speed

Max Flow Rate 3,00 m³/h

H max 40,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,75 m³/h

Min head 8,00 m

kW 0,45 kW

Power consumption ---

Efficiency ---

Model BTM 70-60/A

Family T, TP

Code 7112004001000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 48,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 1,20 m³/h

Min head 10,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

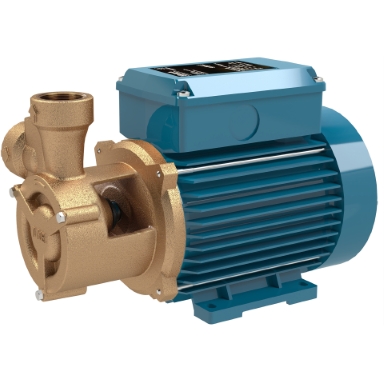

Model BTM 70/A

Family T, TP

Code 7112004100000

Speed Fixed speed

Max Flow Rate 3,60 m³/h

H max 59,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,48 m³/h

Min head 10,00 m

kW 0,75 kW

Power consumption ---

Efficiency ---

Model BTPM 78/A

Family T, TP

Code 7112006000000

Speed Fixed speed

Max Flow Rate 1,00 m³/h

H max 75,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,06 m³/h

Min head 15,00 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model BTPM 78-60/A

Family T, TP

Code 7112006001000

Speed Fixed speed

Max Flow Rate 0,75 m³/h

H max 74,00 m

Pump casing Bronze G-Cu Sn 10 EN 1982

Min Flow Rate 0,06 m³/h

Min head 25,00 m

kW 0,37 kW

Power consumption ---

Efficiency ---

Model TP 100-60/B

Family T, TP

Code 7000008301000

Speed Fixed speed

Max Flow Rate 2,40 m³/h

H max 145,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 0,60 m³/h

Min head 81,50 m

kW 2,20 kW

Power consumption ---

Efficiency ---

Model T 100/A

Family T, TP

Code 7000010200000

Speed Fixed speed

Max Flow Rate 4,80 m³/h

H max 103,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 1,89 m³/h

Min head 68,00 m

kW 3,00 kW

Power consumption ---

Efficiency ---

Model T 100-60/B

Family T, TP

Code 7000010201000

Speed Fixed speed

Max Flow Rate 4,80 m³/h

H max 100,00 m

Pump casing Cast iron GJL 200 EN 1561

Min Flow Rate 2,40 m³/h

Min head 75,00 m

kW 4,00 kW

Power consumption ---

Efficiency ---

Filters for

Results T, TP

Filters for

Filters for
