Pump Selector

pump

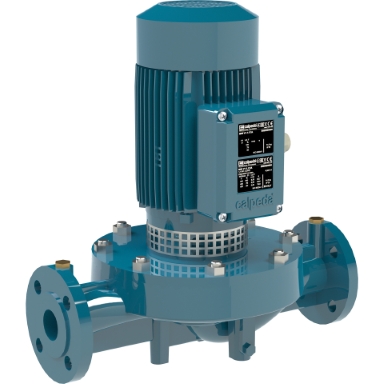

Model NR 50/125F-60/A
Family NR
Code 70MA050101000
photoRow
Speed Fixed speed
Max Flow Rate 33,00 m³/h
H max 14,70 m
Pump casing Cast iron GJL 200 EN 1561
Min Flow Rate 15,00 m³/h
Min head 5,50 m
kW 1,10 kW
Power consumption
Efficiency ---

Loading...

Pump and motor datasheet

mc/h
m

0
Your selection
9462
NR 50/125F-60/A
70MA050101000



Curve





Loading...

Pump and motor datasheet

  • n (rpm):

    3450

  • N. of impellers:

    1

  • H max (m):

    14.70

  • H min (m):

    5.50

  • Q min (mc/h):

    15.00

  • Q max (mc/h):

    33.00

  • Pn (kW):

    1.10

  • Pn (HP):

    1.50

  • Impeller diameter (mm):

    100.00

  • Motor type:

    IM

  • Motor phases:

    3~

  • Un (V):

    220/380

  • fn (Hz):

    60

  • Motor poles:

    2

  • In (A):

    5.7 / 3.3

  • Insulation class:

    F

  • Service:

    S1

  • Min liquid temperature (°C):

    -10.00 °C

  • Efficiency Index (EI):

    IE3-84.0

  • la/In:

    5.40

  • Protection:

    IP 54

Construction materials

  • Pump Casing:

    Cast iron GJL 200 EN 1561

  • Lantern bracket:

    Cast iron GJL 200 EN 1561

  • Impeller::

    Cast iron GJL 200 EN 1561

  • Shaft:

    Cr-Ni steel 1.4305 EN 10088 (AISI 303)

  • Mechanical Seal:

    Carbon-Ceramic-NBR

  • Counterflanges:

    Steel S235JR 1.0038 EN 10025-2

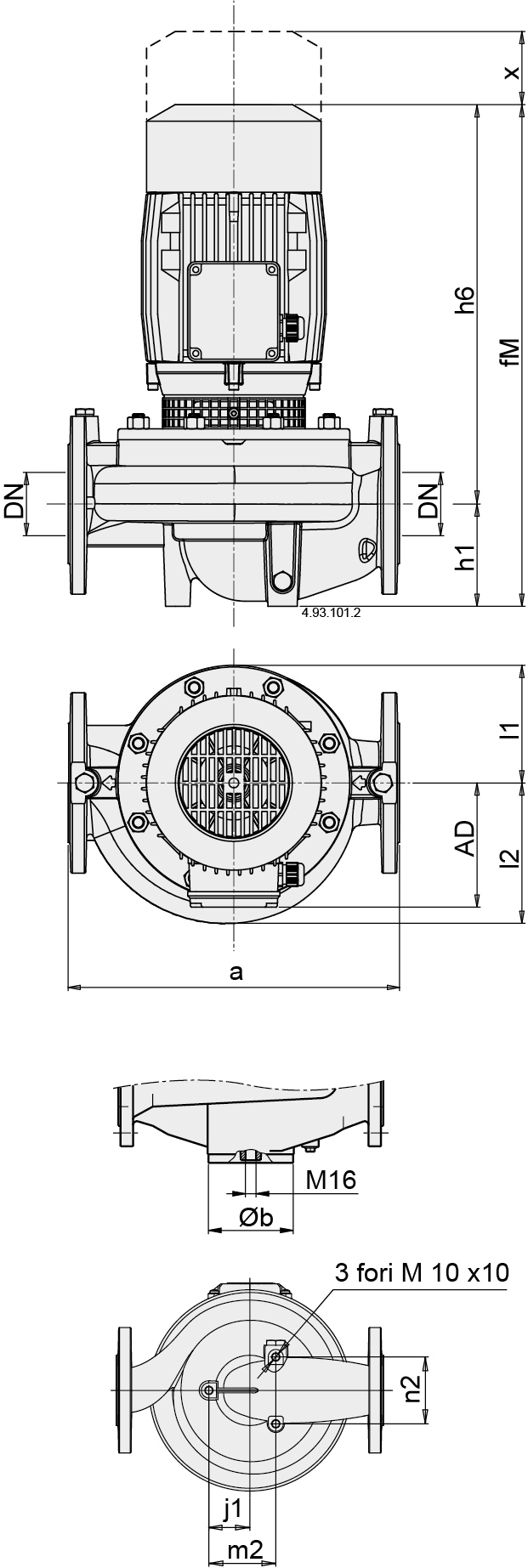

Dimensions (mm)

  • a 340.00 mm
  • fM 437.00 mm
  • h1 90.00 mm
  • h2 170.00 mm
  • h6 347.00 mm
  • j1 45.00 mm
  • j2 40.00 mm
  • j3 79.00 mm
  • l1 96.00 mm
  • l2 115.00 mm
  • AD 130.00 mm
  • x 75.00 mm
  • dn1 50
  • dn2 50
  • s1 M10
Dimensions (mm)

NR

In-line pumps

Construction

Close-coupled, single-impeller, centrifugal pumps; electricmotor with extended shaft directly connected to the pump.

NR, NR4 series: Single head electropumps.
NRD, NRD4: Twin head pump with built-in automatic switching valve. The two head can operate singularly or in parallel.
Pump casing with suction and delivery connections with the same diameter and on the same axis (in-line).
Version with frequency converter (on request)

Application

For clean liquids without abrasives, which are non-aggressive for the pump materials ( solids content up to 0.2%).
For heating, air-conditioning, cooling and circulation plants.
For civil and industrial applications.
When low noise operation is required (n ? 1450 rpm).

Operating conditions

Liquid temperature from -10 °C to +90 °C.
Ambient temperature up to 40° C.
Total suction lift up to 7 m.
Maximum permissible working pressure up to 10 bar.
Continuous duty.
